HGL2M-40 Residual Current Operated Circuit-Breakers With Integral Overcurrent Protection

Short Description:

Monthly selling (pcs): 6000

Hot sales well country:  Spain、Portugal

Product Detail

Product Tags

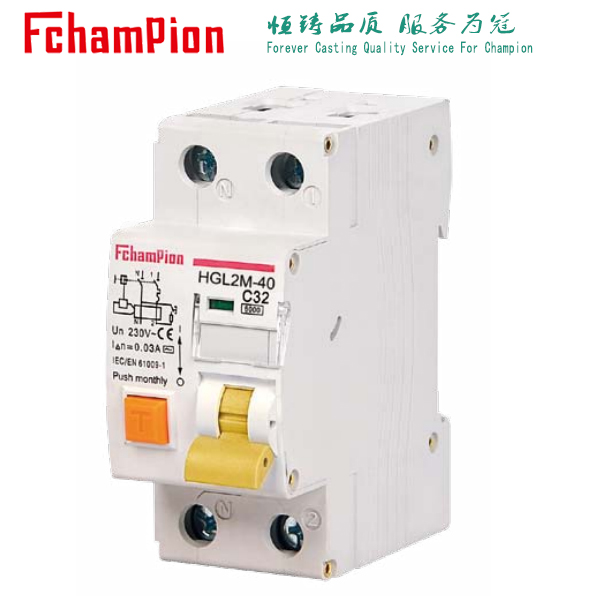

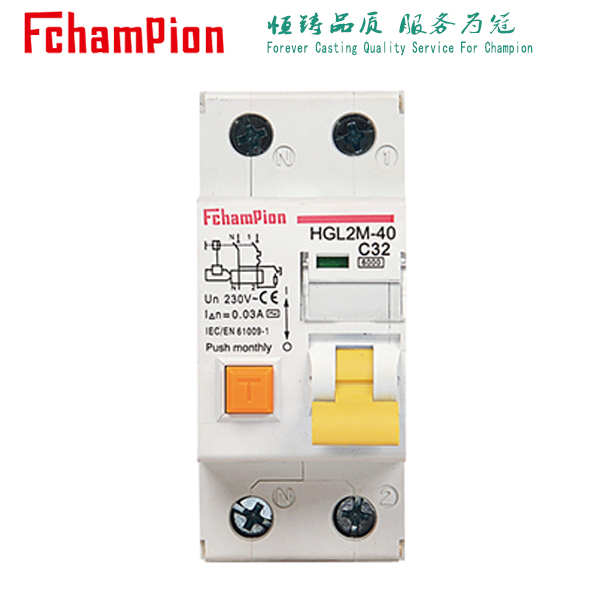

HGL2M-40 Earth Leakage Circuit Breaker

Standard   IEC/EN61009-1 GB/T16917.1
Instantaneous trip type   B/C/D
The number of poles   1P+N
Rated short circuit breaking capacity Inc 6kA
Leakage protection trip type   Electronic /Electromagnetic
Rated working current In 6-40A
Rated working voltage Ue AC 230/400V
Rated operating frequency   50/60Hz
Rated insulation voltage Ui 500V
Rated residual operating current I △ n 10/30/100/300mA
Life   4000 Times
Type of residual current   A/AC
Installation dimensions   See table
