Application

HGLC2 series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50Hz or 60Hz,rated current up to 95A,for making,breaking,frequently starting &controlling the AC motor.
This series contactor complies with GB14048.4,IEC60947-4-1.

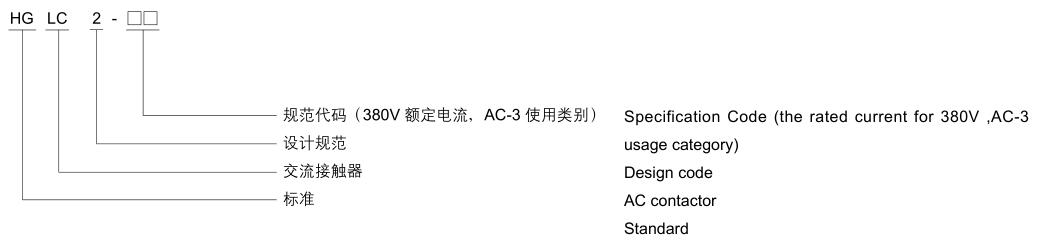

Model and Implication

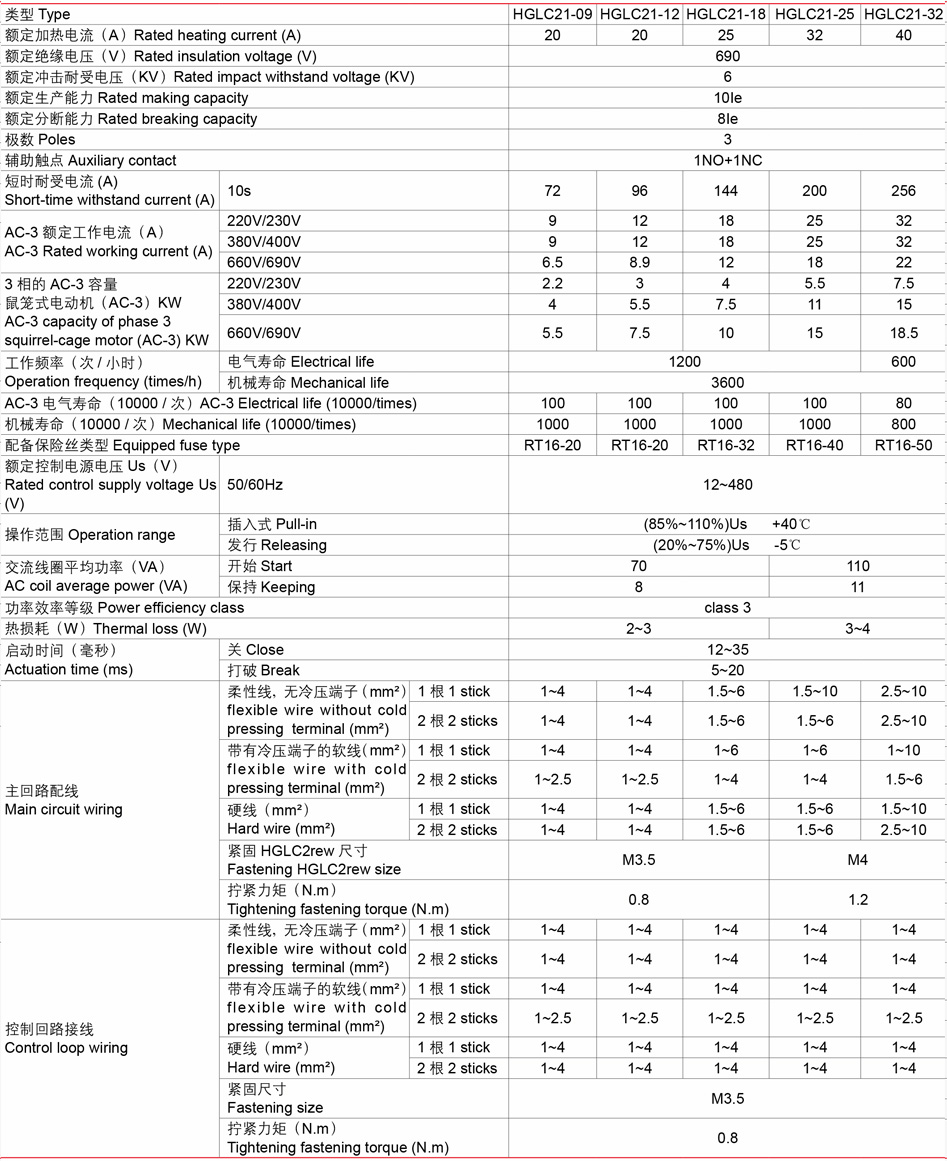

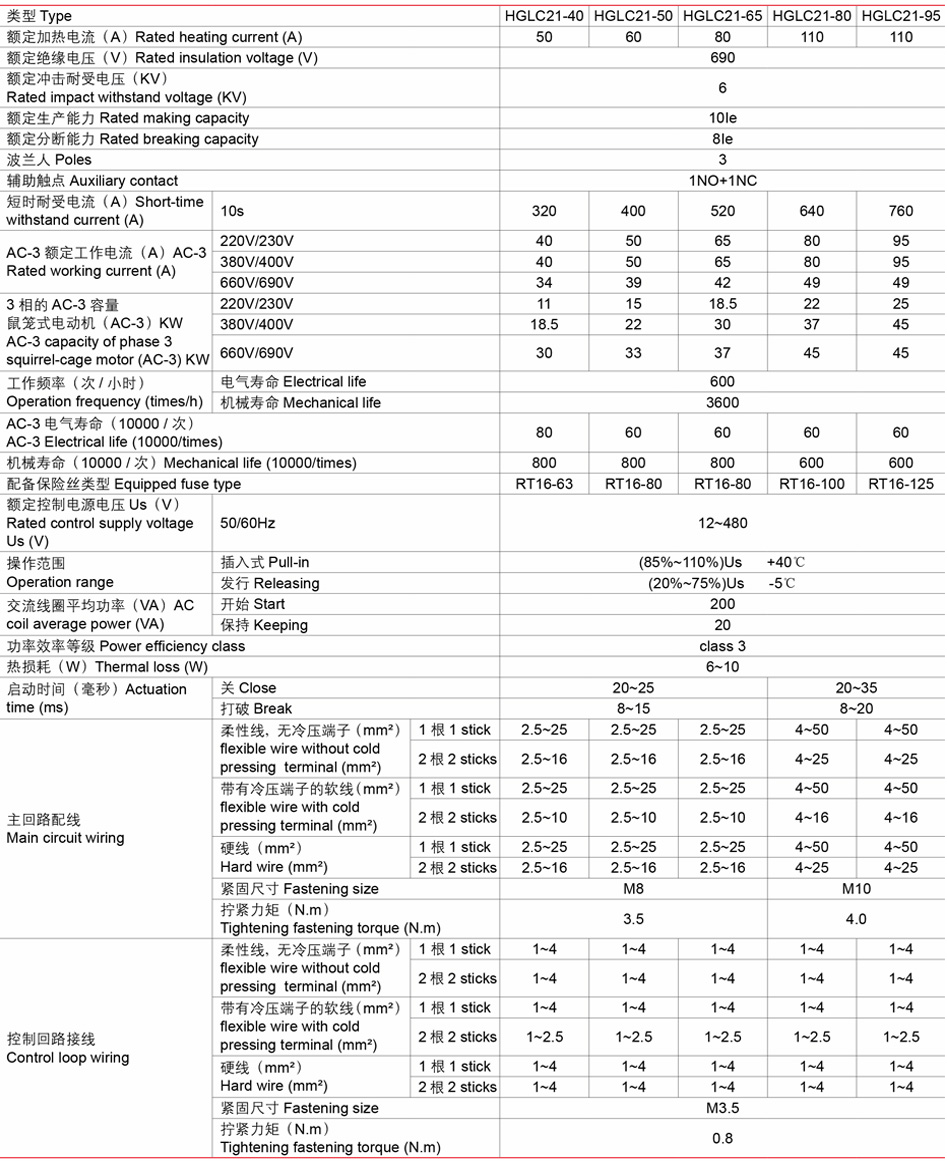

Main Parameters and Technical Performance

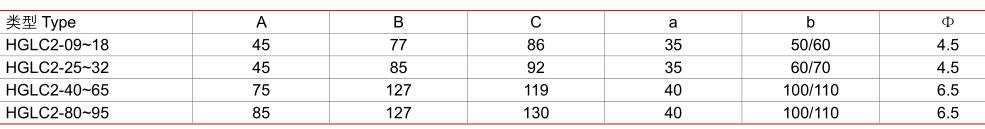

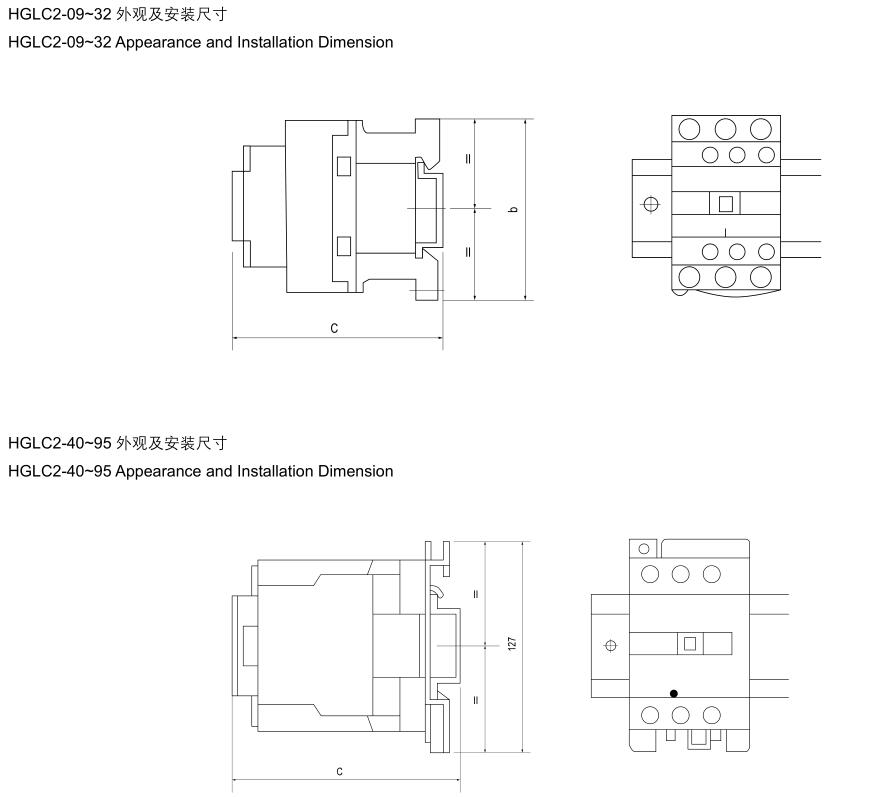

Appearance and installation dimension
