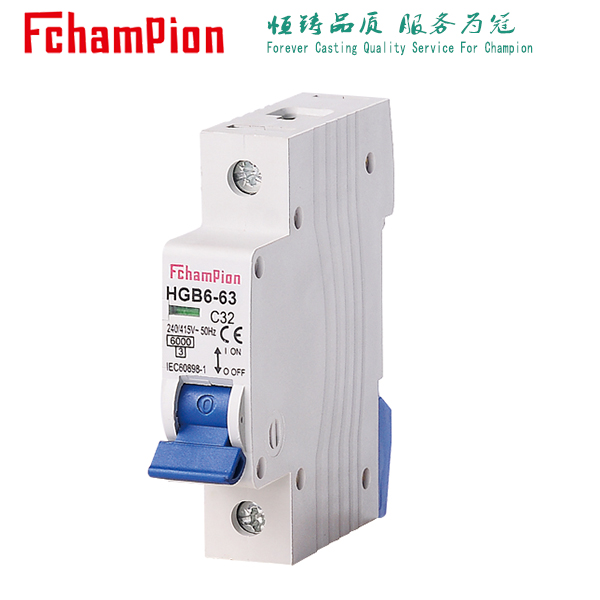

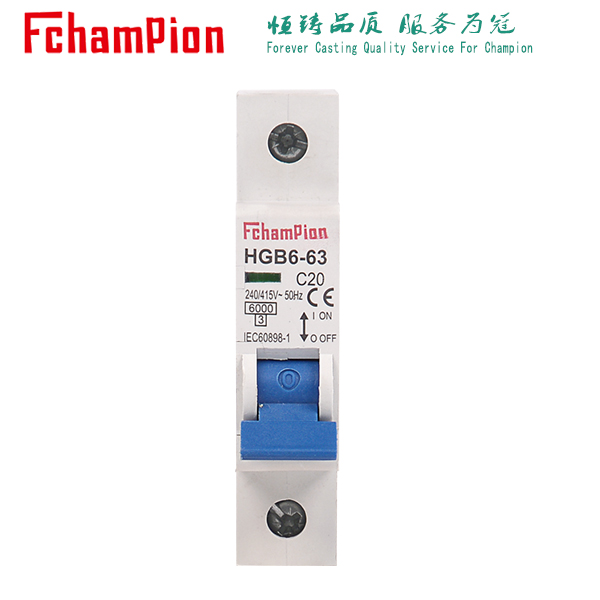

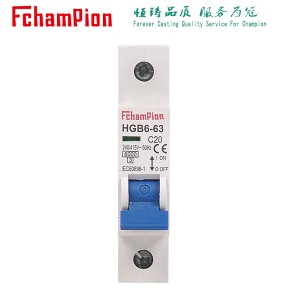

HGB6-63 Miniature Circuit Breaker
| Standard | IEC/EN60898-1GB/T10963.1 | |
| Instantaneous trip type | B/C/D | |
| The number of poles | 1P/1P+N/2P/3P 3P+N/4P |
|
| Rated short circuit breaking capacity | lnc | 4.5/6kA |
| Rated working current | In | 1-63A |
| Rated working voltage | Ue | AC230/400V |
| Rated operating frequency | 50/60Hz | |
| Rated insulation voltage | Ui | 500V |
| Rated impulse withstand voltage | Uimp | 4kV |
| Mechanical/electrical life | 10000/4000Times | |

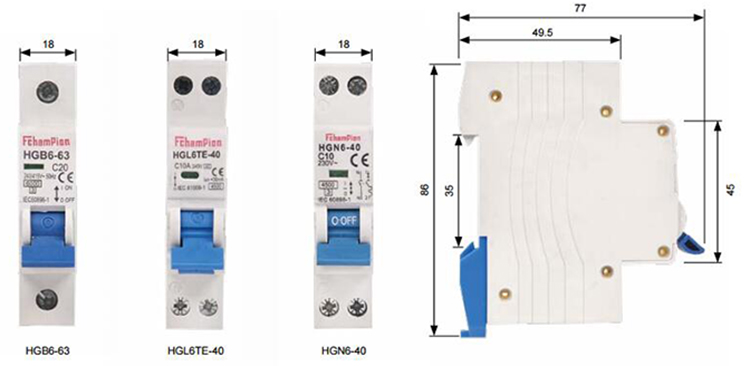

| Installation dimensions | Seetable |
