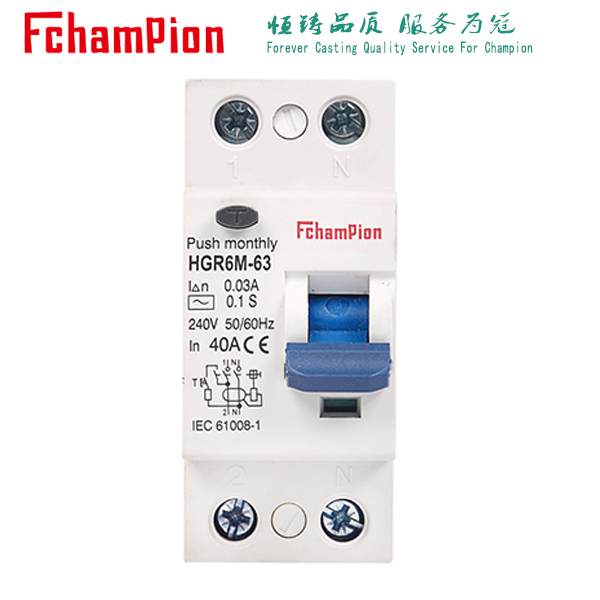

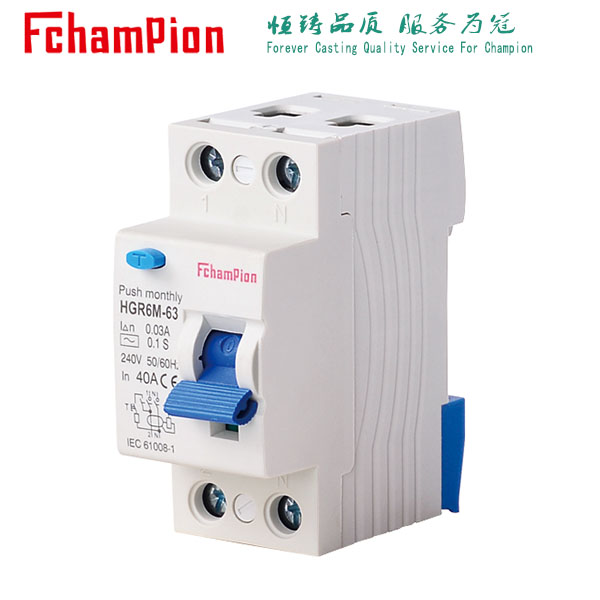

HGR6M-63 Residual Current Circuit Breaker

Short Description:

Monthly selling (pcs): 8000

Hot sales well country:  Australia、 New Zealand

Product Detail

Product Tags


Standard   IEC/EN61009-1 GB/T16917.1
Leakage protection trip type   Electronic /Electromagnetic
The number of poles   1P+N/3P+N
Rated limit short circuit breaking capacity lnc 10kA
Rated working current In 16-63A
Rated working voltage Ue AC230/400V
Rated operating frequency   50/60Hz
Rated impulse withstand voltage Uimp 4KV
Rated residual operating current I △ n 10/30/100/300 mA
Mechanical/electrical life   4000 Times
Type of residual current   A/AC
Installation dimensions   Seetable
Standard   IEC/EN61009-1 GB/T16917.1
