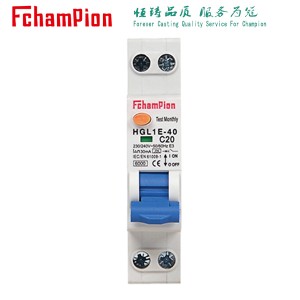

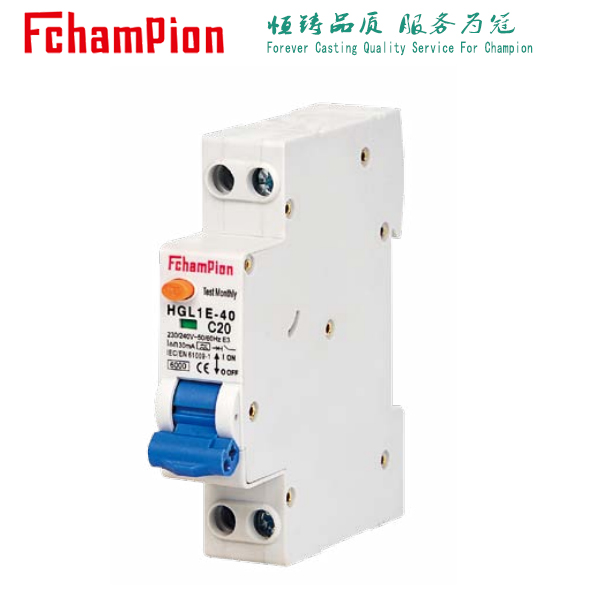

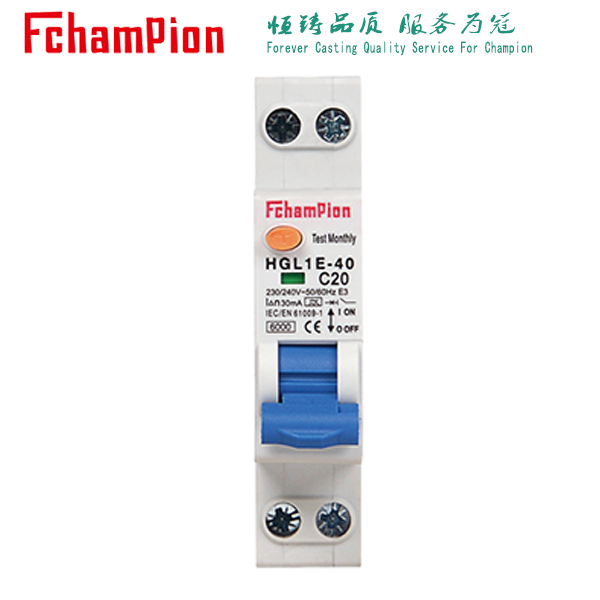

HGL1E-40 Residual Current Operated Circuit-Breakers With Integral Overcurrent Protection
| Standard | IEC/EN61009-1 GB/T16917.1 | |
| Instantaneous trip type | B/C/D | |
| The number of poles | 1P+N | |
| Rated short circuit breaking capacity | lcn | 6kA |
| Release Type of Leakage Protection | E: Electronic | |
| Rated working current | In | 6-40A |
| Rated working voltage | Ue | AC 230V |
| Rated operating frequency | 50/60Hz | |
| Rated insulation voltage | Ui | 500V |
| Rated residual operating current | 10/30/100/300mA | |
| Life | 4000 Times | |
| Residual current type | A/AC | |
| Installation dimensions | Seetable |
