HGH9-125 Isolating Switch

Short Description:

Monthly selling (pcs): 3800

Hot sales well country:  Turkey、Iran


Product Detail

Product Tags

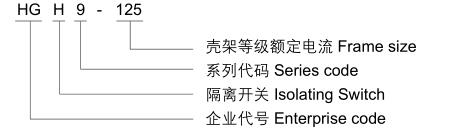

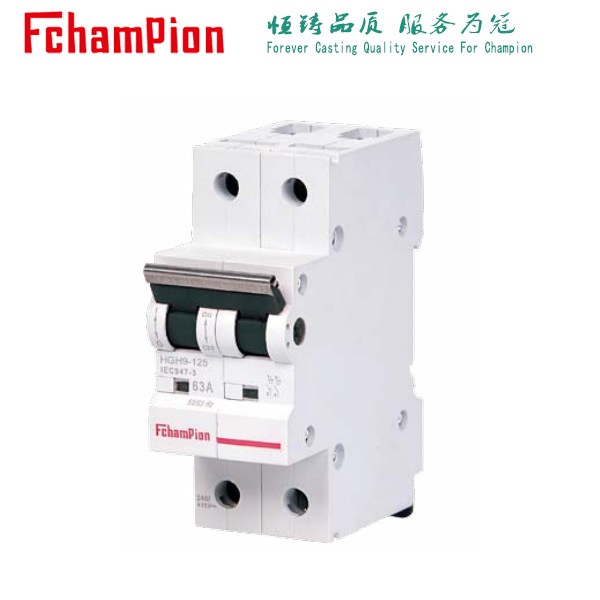

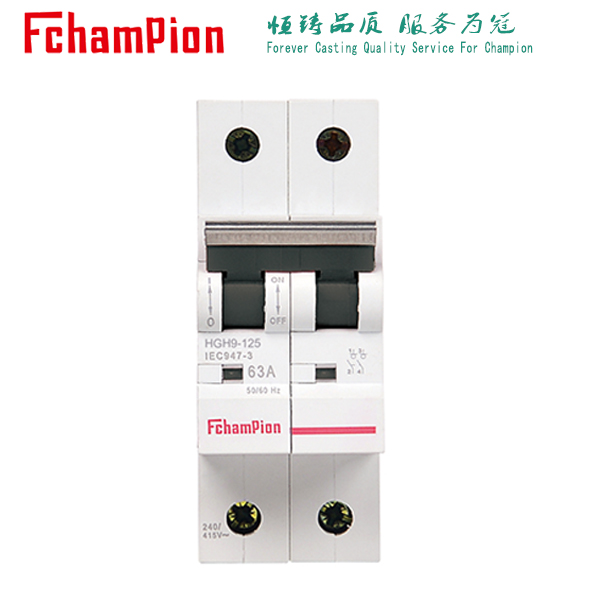

HGH9-125 Isolating Switch



HGH9-125正面



Standard   IEC/EN60947-3 GB/T14048.3
Rated working current In 32-125A
Rated working voltage Ue AC 230/400V
The number of poles   1P/2P/3P/4P
Rated operating frequency   50/60Hz
Rated insulation voltage Ui AC 500V
Rated impulse withstand voltage Uimp 4kV
Mechanical/electrical life   8000/1500 Times
Installation dimensions   See table
