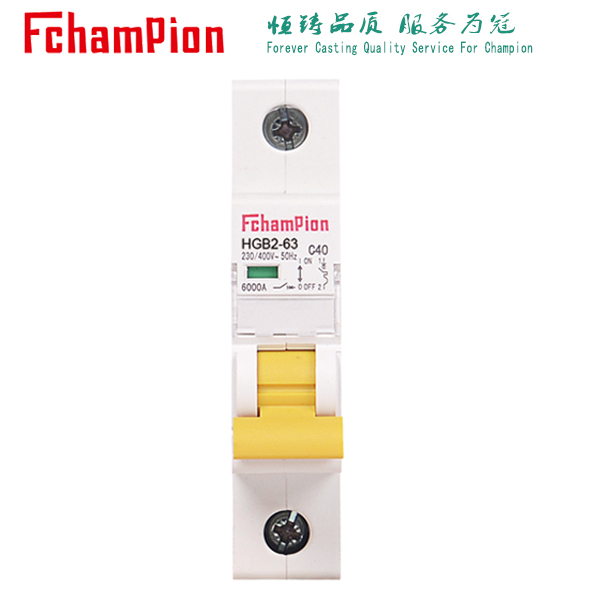

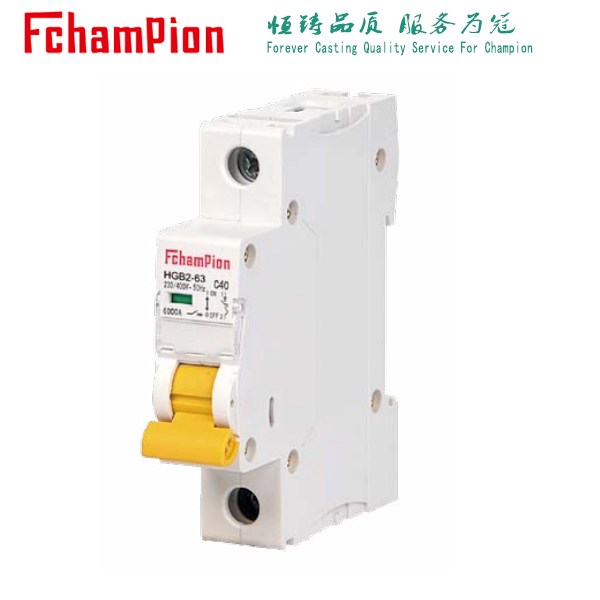

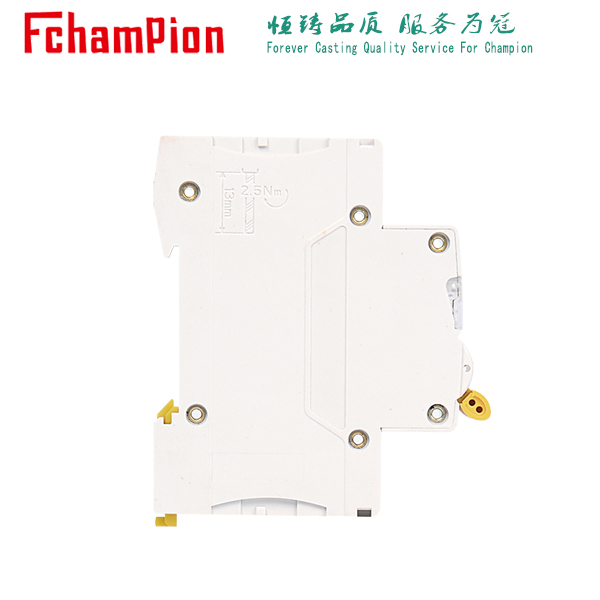

HGB2-63 Miniature Circuit Breaker

Short Description:

Monthly selling (pcs): 80000

Hot sales well country:  Spain、Portugal

Product Detail

Product Tags

HGB2-63 Miniature Circuit BreakerHGB2-63 Miniature Circuit Breaker

Standard   IEC/EN60898-1 GB/T10963.1
Instantaneous trip type   B/C/D
The number of poles   1P/1P+N/2P/3P/3P+N/4P
Rated short circuit breaking capacity Inc 6kA
Rated working current In 1-63A
Rated working voltage Ue AC 230/400V
Rated operating frequency   50/60Hz
Rated insulation voltage Ui 500V
Rated impulse withstand voltage Uimp 4kV
Mechanical/electrical life   10000/4000  Times
Installation dimensions   See table
