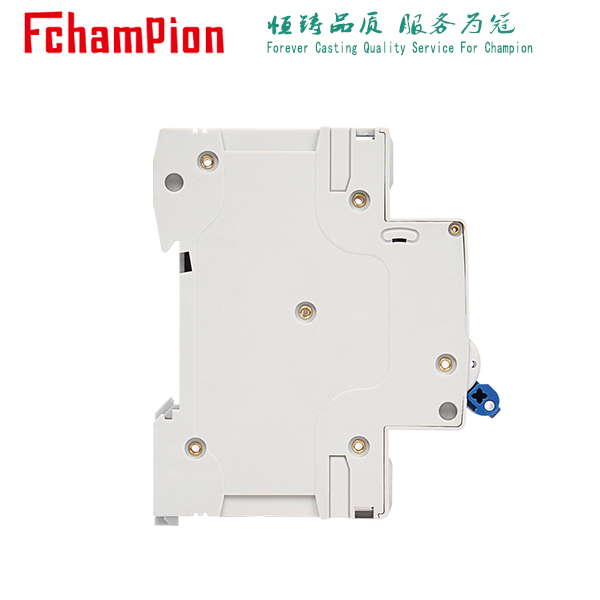

HGB1-63 Miniature Circuit Breaker
| Standard | IEC/EN61009-1 GB/T16917.1 | |
| Leakage protection trip type | Electronic /Electromagnetic | |
| The number of poles | 1P+N/3P+N | |
| Rated limit short circuit breaking capacity | lnc | 10kA |
| Rated working current | In | 16-63A |
| Rated working voltage | Ue | AC230/400V |
| Rated operating frequency | 50/60Hz | |
| Rated impulse withstand voltage | Uimp | 4KV |
| Rated residual operating current | I △ n | 10/30/100/300 mA |
| Mechanical/electrical life | 4000 Times | |
| Type of residual current | A/AC | |
| Installation dimensions | Seetable |
